Diesel Engine Mobile Crusher For Sale

  • >=1 Sets
    $300.00
Power(W):
refer to different specification
Model Number:
PE150*250,PE200*300,PE400*600
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Henan, China
Brand Name:
HengXing
Application:
Mining
Weight:
depending on different models
Certification:
ISO9001:2008,CE
Type:
Jaw Crusher
Motor Type:
AC Motor
Capacity(t/h):
10-50t/h
Dimension(L*W*H):
refer to specifications
product name:
Diesel Engine Mobile Crusher For Sale
mobile jaw crusher price:
negotiate
Max feeding size:
50-340mm
Color:
as request
Test&Installation:
supply test service
After sale Service:
Life-long Service
Jaw plate material:
High Manganese Steel
Spare parts supply:
Lifelong Time
warranty:
one year
Motor:
Chinese Famous Brand
Supply Ability
Supply Ability:
100 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
mobile jaw crusher delivery by standard container ,small parts by wooden bos
Port
TianJin,QingDao,ShangHai port
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 15 To be negotiated

Diesel Engine Mobile Crusher For Sale

Product Description



 Mobile Diesel engne Jaw crusher Usage and Application

Diesel engine jaw crusher is portable and powered by diesel engine,which is mainly used for crushing pebble, granite, basalt, bauxite, aggregate and quartz sand etc.Diesel engine jaw crusher is widely applied in places that don't have enough electricity or without electricity. Diesel engine jaw crusher is adopted as secondary and fine crushing. equipment for every kind of rocks and stones with compressive strength less than 320 Mpa.

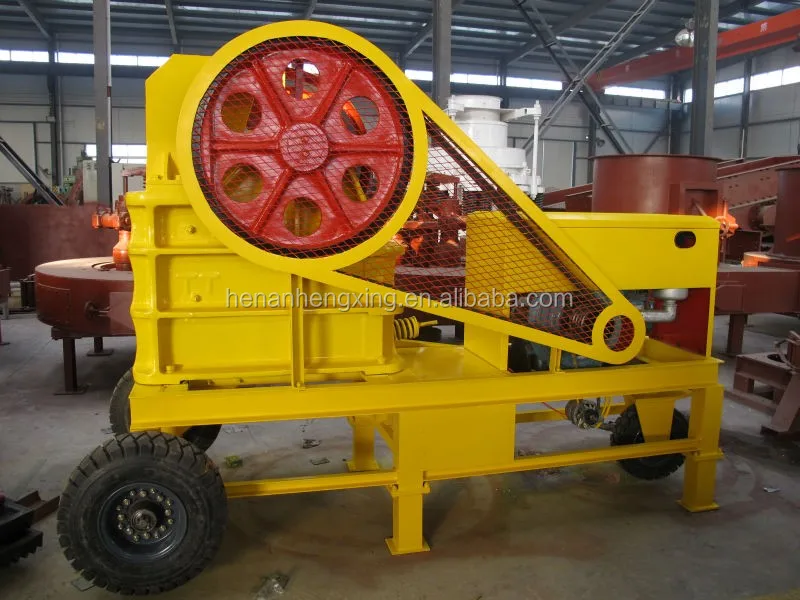

 mobile jaw crusher

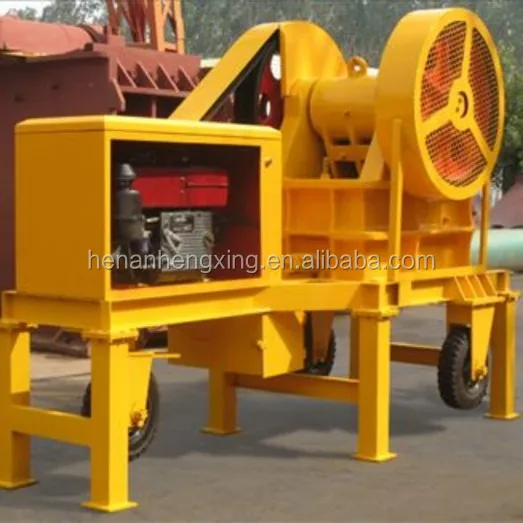

small diesel engine jaw crusher 0086  137 8347 1727

Working Principle of the mobile diesel engine jaw crusher:



The belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.




Mobile Diesel Engine Jaw Crusher Features



1. Simple structure, convenient maintenance;

2. High crushing ratio, even output granularity;

3. High reliability, low investment;

4. Low noise, less dust.





Mobile Diesel Engine Jaw Crusher Main Technical Parameters:

Model
Feeding Size
(mm)
Discharging Size
(mm)
Capacity
(t/h)
Power for Diesel engine
(kw)
Weight
(kg)
Overall Dimension
(mm)
PEC1525
<125
10-40
1-3
5.7
920
1836×1030×1408
PEC2540
<200
20-50
5-20
15.5
3150
2805×1210×1860
PCC3040
<70
≤12
≤8
11.5
960
2210×1195×1360
PCC4060
<100
≤15
≤15
23
1650
2612×1205×1670



diesel engine jaww crusher
