Mini Mobile Rock Crusher Driving By Diesel Engine

FOB Reference Price:Get Latest Price
$2,500.00 - $4,000.00 / Set | 1 Set/Sets small rock crusher (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China
Brand Name:
HengXing
Model Number:
PE150*250,PEX150*750,PE200*300,PE250*400,PEX250*1200
Application:
Mining,Quarry,Construction,etc
Weight:
depending on different small stone crusher model
Certification:
ISO9001:2008,CE
Type:
Jaw Crusher
Motor Type:
AC Motor
Capacity(t/h):
5-20tph
Dimension(L*W*H):
depending on different model
Power(W):
refer to different small stone crusher model
Max feeding size:
200-1020mm
Spare parts supply:
Lifelong Time
mini rock crusher price:
negotiate
Material:
High manganese steel
Motor:
Chinese Famous Brand
mini lrock crusher colour:
as request
Test&Installation:
Professional Engineer Assigned
drawing:
supply
After sale Service:
Life-long Service
Quality:
International standard
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
mini rock crusher packed by standard container20 GP/40GP container
Port
QIngDao/TianJin/ShangHai
Lead Time :
Shipped in 10 days after payment
Product Description

Mini Mobile Rock Crusher Driving By Diesel Engine :


Application:

Jaw Crusher can reach the crushing ratio of 4-6 and the shape of final product is even.Mini Jaw Rock Crushers are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Jaw crushers can be used in mining, metallurgical industry, construction, road and railway building, water conservancy, chemistry, etc.


This device is cast by using new type efficient wear-resisting materials, thus improving its use performance. Users can adjust the discharge mouth automatically according to the production requirements, realizing sufficient material crushing.

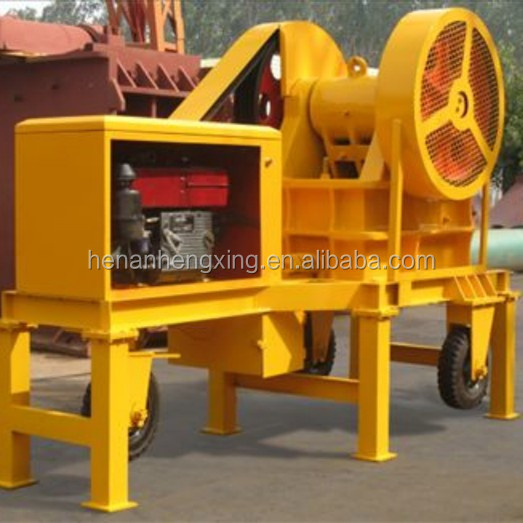

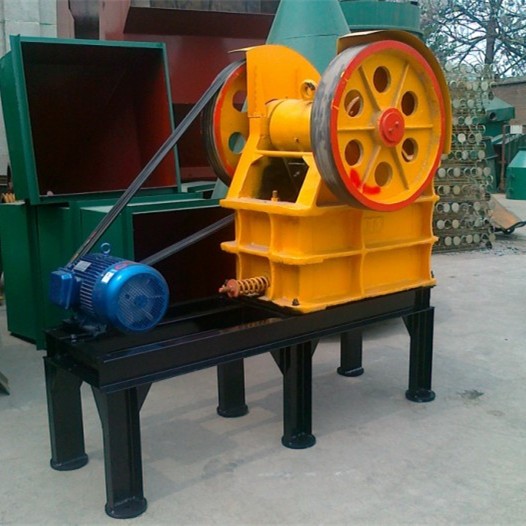

There are small rock crusher driven by motor and small stone crusher driven by diesel engine,see the below photo:

Mini Rock Crusher Structure

The mini rock  jaw crusher is mainly composed of frame, fixed jaw plate,movable jaw plate, left and right guard plates, movable jaw, eccentric shaft,toggle plate, adjustable base, adjustable screw stem, adjustable wedge block, fitting of tension spring and so on.





Working Principle

Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done. When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room. With the motor continuously rotating and the material periodically crushed and discharged by the crusher, the mass production can be realized.


Small Rock Crusher Advantages:


1. Simple structure, small volume.

2. Big crushing ratio, high crushing rate.

3. Convenient installation, flexible production.

4. Low energy consumption, high production return rate.

5. Durable use, simple maintenance.

6. Reliable working, economic operation fee.

Technical Parameter

Small Rock Crusher Driven By Motor:

Small Rock Crusher Driven By Diesel Engine

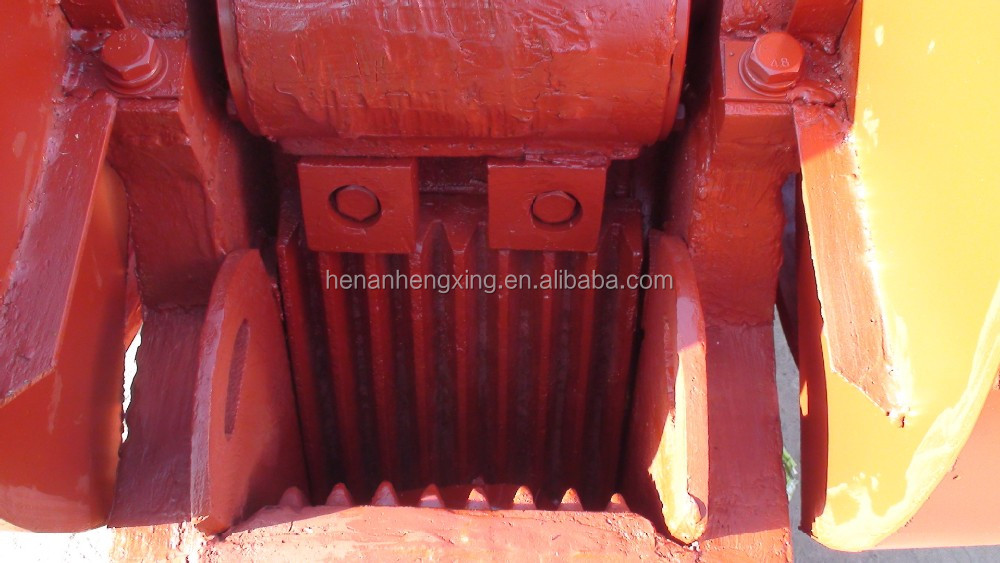

Detailed Images
Packing & Delivery

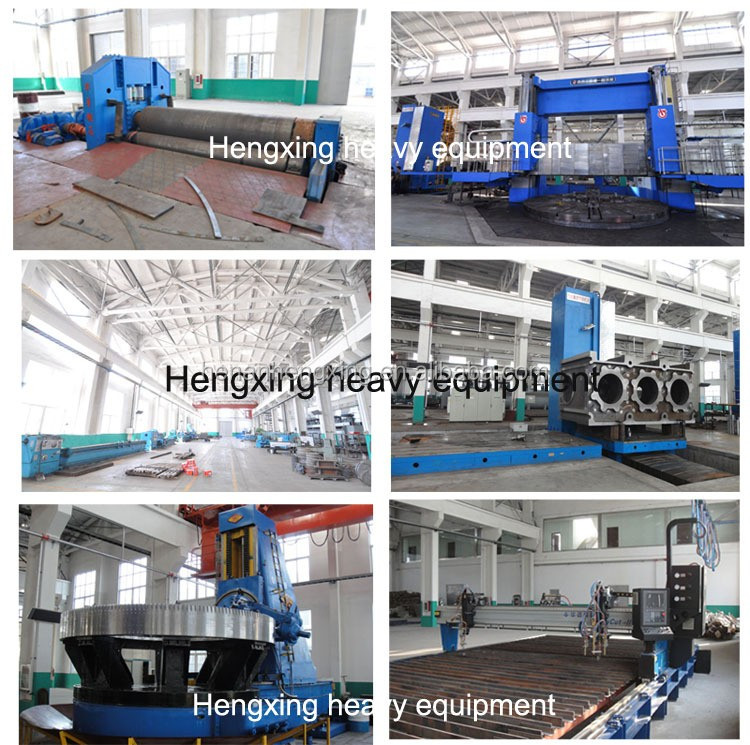

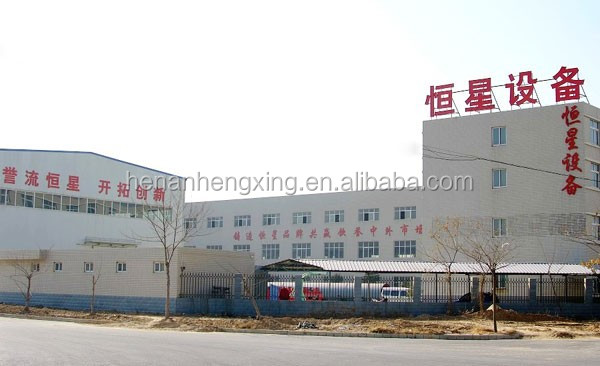

Factory Workshop
Contact

Ms Sara

Mobile phone(whatsapp): 0086 137 8347 1727
Skype: sarapang6
Wechat: sarapang6
Email: sales006#zzhxmachine.com


FAQ

1. Support Trade Assurance Tradiing Term: Yes

2.We’d like to recommend a suitable small rock crusher model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry of the small stone crusher machine price .

What is the raw materials and input size :

What is the capacity per hour do you need?

What is the output size do you need?
