Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand

FOB Reference Price:Get Latest Price
$10,000.00 - $80,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
2.2*18m
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Drum Drying Equipment
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Henan, China
Brand Name:
Hengxing rotary dyrer
Voltage:
380v or as requirement
Certification:
CE, SGS, ISO9001:2008
Dimension(L*W*H):
diameter 3m length 25m
Power(W):
75kw
Application:
rotary dryer, building material, metallurgy, slag, coal, clay
product name:
Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer
Body Material:
Q235
rotary dryer drying temperature:
500-700 degree
Dust catcher:
included
Electric motors:
famous brand
dryer machine spare parts:
Long term supply
Operator:
2/ shipt
rotary dryer type:
single drum
Weight:
5-100t
Supply Ability
Supply Ability:
99 Set/Sets per Month 1000*10m Small Rotary Dryer For Silica Sand
Packaging & Delivery
Packaging Details
Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand packed
in container or bulk goods, spare parts packed in wooden case
Port
Qingdao, Tianjin
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 20 To be negotiated

Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand

Product Description



1. Brief introduction of rotary dryer :

the  rotary dryer is widely used for drying slag limestone, coal powder, slag, clay, etc. Dryer can also be used in building materials, metallurgy, chemical and cement industry. Rotary Dryer mainly consists of dryer body, raw material feeding plate, driving and supporting device, seal ring, etc. Dryer can be generally divided into four types, they are: rotary dryer, triple-drum dryer, indirect heat transfer dryer, vertical dryer. Different kind of dryer has its own characters and advantages, the specific choice of a special dryer depends on different elements.

Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand

 Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand

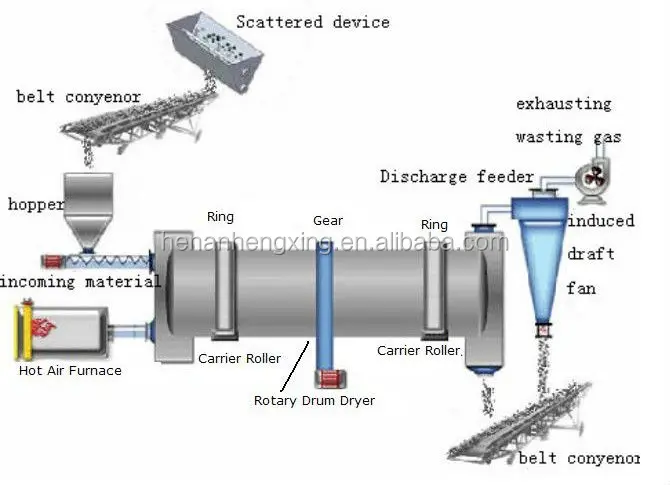

2.rotary dryer Working Principle:



1. Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator.



2. Materials enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together.



3. Materials go to the lower side by gravity when the barrel is rotating.



4. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer.

 Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand








3. rotary Dryer For Sand Technical Parameters:


type(mm)
indiclination(%)rotation speed(r/min)input tempreture(ºC)motor power(kw)outpur(t/h)weight(t)reforance
Φ600×60003-53-8≤70030.5-1.52.9
Φ800×80003-53-8≤70040.8-2.03.5
Φ800×100003-53-8≤70040.8-2.54.5
Φ1000×100003-53-8≤7005.51.0-3.55.6
Φ1200×100003-53-8≤7007.51.8-514.5
Φ1200×120003-53-8≤700112-614.8
Φ1500×120003-52-6≤800153.5-917.8
Φ1800×120003-52-6≤800185-1225
Φ2200×120003-51.5-6≤80018.56-1533
Φ2200×180003-51.5-6≤8002210-1853.8
Φ2200×200003-51.5-6≤8003012-2056
Φ2400×200003-51.5-5≤8003718-3060
Φ2800×150003-51.5-5≤8004020-3572.5
Φ2800×180003-51.5-5≤8004025-3575
Φ3000×200003-51.5-5≤8005528-4078
Φ3000×250003-51.5-5≤8007532-45104.9





4. Rotary Dryer For Sand Features:



1. Our small rotary dryer adopts new Spreading plate device, which has guidance, flow, material functions



2. It can make the material content in the dryer radial cross section to full uniform, material will become thin and all.



3. The state of the heat flow entirely, to achieve the purpose of make full use of the heat.



4. Our dryer choose reasonable operating parameters, coal consumption and power consumption of general baked dry machine more than 10-15%, one machine yields above 10-15%.



5. It has been widely used in the cement and mineral processing enterprise.



 Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand .JPG

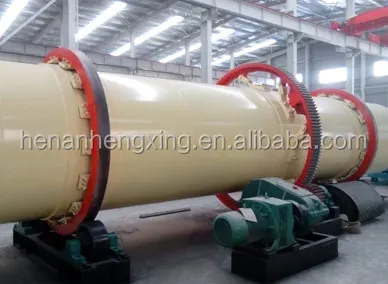

Rotary dryer pictures:

Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand



Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand .jpgIndustrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand.jpg

rotary drum dryer

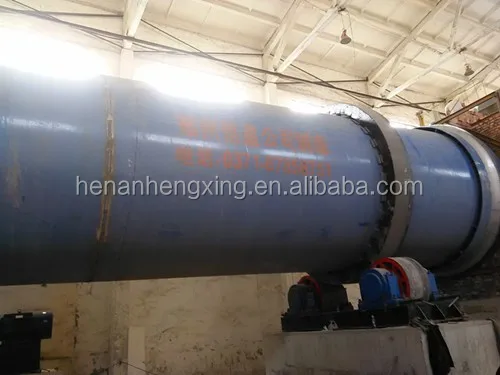

5.HengXing Rotary Dryer Installation Site:

Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand .jpg

Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand



Packaging & Shipping



Our Factory Rotary Dryer and delivery :

Industrial Silica Sand Dryers Machine River Quartz Sand Rotary Drum Dryer For Drying Sand





Our Services



Hengxing equipment  can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.



About Spare Parts

Hengxing equipment will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.



About Training

Hengxing equipemnt could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.



About Installation and Commissioning

Hengxing equipment  are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.



Company Information



Our company has realized the computer informationization of management, production, and the CAD and CAPP of production research and process design. We have 29800 square meters of total factory area. We have established strict quality control system to make sure each manufacture step is perfect.





We have passed some international certifications such as ISO, SGS, GMP,CE etc. You can rest assured aboutour machinery.





With advanced CAD&CAPP technology we have built long coorperate relationships with world customers such as America, Cannada, Poland, India, Russia, Australia, Brazil, South Africa, Mongolia, etc. Our products have been exported to 98 countries.



factory2


 Customer visit :
201802_trade
FAQ

 For provide suitable small rotary dryer for sand quotation ,please provide the below information :

1.what is the raw material ?

2.what is the production capacity per hour ?

3.what is the raw material input moisure ?

4.what is the output moisture ?
