The Appplication of rotary drying equipment rotary dryer is mainly used for drying materials with some moisture and granularity in ore beneficiation, building material, metallurgy and chemical department. Drum dryer has high adaptability to the materials so that it can be used for drying all kinds of materials, and in addition, the operation of this equipment is simple and reliable, for this reason, it gets wide application.
rotary drying equipment inside :

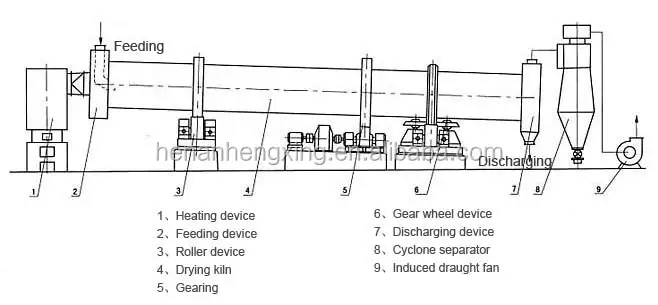

The Inner Structure and Function of the rotary drying equipment :
This rotary dryer machine is mainly composed of rotary part, lifting board, transmission part, supporting part and seal ring. The drum dryer produced by our company uses reasonable running parameters, and the coal and electricity consumption is reduced by over 10-15% and the output per machine is improved by over 10-15%, so that it has been widely used in the cement plants and ore beneficiation plants.
rotary drying equipment Workiing Principle:
The heat source of the drum dryer comes from the combustion device and this dryer uses co-current heating method, so that when the materials to be dried go into the cylinder from the feeding box or feeding chute, they are pushed back by the spiral lifting board. Since the drum dryer is obliquely installed, the materials flow to the lower end of the machine under the gravity and the rotation of the machine, and on the other hand, the materials are repeatedly lifted by the lifting board to the higher end and then spread down constantly, so that the materials will form a even curtain inside the cylinder and conduct heat exchange with the hot air inside the cylinder. Since the materials constantly spread and the water contained in them will be dried, thus achieving the aim of drying.
rotary drying equipment Main features:
1.Strong resistance to overload, large capacity, less fuel consumption, and low drying cost. 2.Adopts downstream drying method, flue gas and wet material into the drying machine from the same side;adopt high temperature flue gas to obtain high evaporation strength, the outlet temperature of the dryer is low and high thermal efficiency is good.
3.It can change operation parameters according to the different material properties, make the material in the dryer cylinder body form stable whole broken fabric curtain and improve the heat exchange more sufficiently;
4.With new-type feeding and discharging device, it can prevent from drum dryer feeding jams, discontinuous and uneven return phenomenon, reduces the loading of dust removal system.
5.Special internal structure design, which not only can strengthen the effect on scattered material cleaning and heat conduction but also eliminate the materials sticky phenomenon, making material moisture and stickness more flexible;
6. Drying machine achieved the "zero thrust", greatly reducing abrasion between the tug wheel and catch wheel, make cylinder run smoothly and steadily ;
7.Drying machine adopts "self-aligning roller device", make the wheel and roll ring with a forever linear contact, thus greatly reduces the abrasion and power loss; 8.The product size and moisture could be controlled according to user requirement. The moisture could be lower than 8% while drying the coal slime, the size could be controlled smaller than 8mm.
rotary drying equipment techncial parameters:
rotary drying equipment workshop :
Driving part of the rotary drying equipment :
Stainless steel rotary dryer :

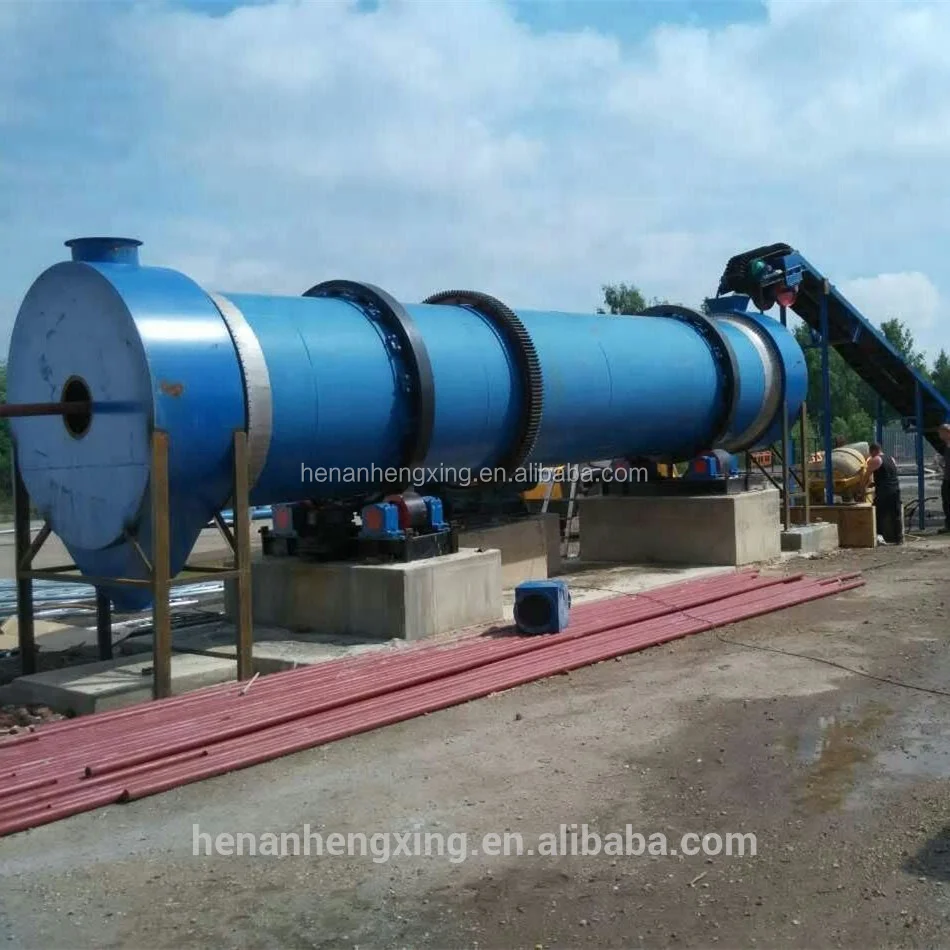

Minerals rotary dryer successfully case :
Packaging & Shipping
The rotary dryer will start delivery in 30 days after payment. It will be packed in the export standard container, its main motor and spare parts will be put in the water-proof and sealed wooden case.
We promise that the rotary dryer will be shipped to you timely and safely.
Hengxing equipment can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.
About Spare Parts
Hengxing equipment will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.
Hengxing equipemnt could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.
About Installation and Commissioning
Hengxing equipment are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.
What we offer?
We are developing heavy industrial machines and allowing mining companies to implement efficient and more effective ways of mining through our goods. We have variety of products available for sale. These products include Stone Crushers, Jaw Crushers, Cone Crushers, Hammer Crushers, and Sand making Machines, Sand Washing machines, Rod Mills, ball mill,, Ore Dressing Machines,rotary dryer,rotary kiln,coal briquette machine . Development of these machines had never been an easy task. Sand making equipments are offered by Hengxing Equipment with very nominal prices. The research facility of our industry enables our engineers to serve international market with new theories and develop a perfect solution for the mining world. Our Products have a great demand in all over the world.
Zhengzhou Hengxing Heavy Equipment Co.,Ltd is a joint stock corporation integrating with research, manufacture and sale which targeted at the large and medium sized series of heavy mining equipment. Our main products are stone crushing machines, sand making machine ,ball mill machine ,mineral ore dressing machines,rotary dryer,rotary kiln, AAC block making machine,coal briquetting machine,which were widely used in mineral processing and construction industry.
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, and we can give you lower price than those trade companies.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
